Product Description

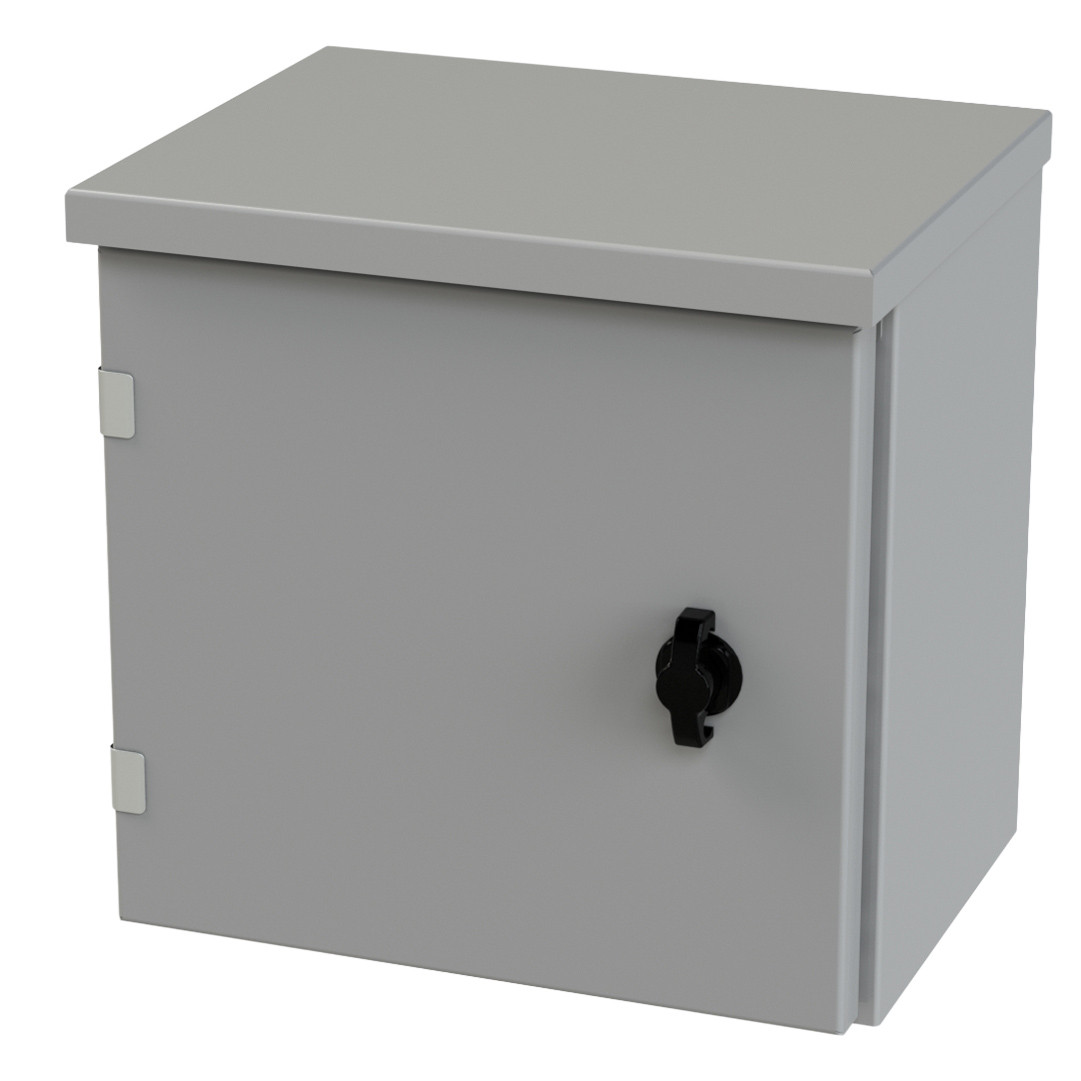

Saginaw Control and Engineering - SCE-12R1208LP Type-3R Hinged Cover Enclosure 12"x 12"x 8"
Application
Designed to house electrical controls, instruments and components in an outdoor environment. Protects against rain, sleet and snow.
Product Specifications:
- Part Number: SCE-12R1208LP
- Description:
- Height: 12.00"
- Width: 12.00"
- Depth: 8.00"
- Est. Ship Weight: 20.00 lbs
Construction
- 0.048 In., 0.063 In. & 0.075 In. Galvannealed steel
- Concealed hinges
- Spot weld construction
- Rain cap
- Mounting hole in back of enclosure
- Collar studs 3/8-16 provided for mounting optional panels
- Black quarter turn wing knob latch with padlocking provisions
- Doors open 180 degrees
- Pour in place oil & water resistant gasket
- Ground stud on door & body
- 3/8-16 grounding kit
- Sub-panel mounting hardware included
Finish
ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.
Industry Standards - (IS7)
- NEMA Type 3R
- UL Listed Type 3R
- CSA Type 3R
- IEC 60529
- IP 32
Product Videos
Custom Field
Condition New
