Product Description
- RELIABLE OUTDOOR ELECTRICITY SUPPLY – The Midwest U041C010P provides 70 amps of unmetered power with 30A TT-30R and 20A GFCI receptacles. Built for safe and weatherproof electricity at RV parks, trailers, campsites, and mobile home areas.
- BUILT TO WITHSTAND HARSH ENVIRONMENTS – Heavy-duty G90 galvanized steel construction with a zinc-coated finish and NEMA 3R rating shields the pedestal from corrosion, rain, and outdoor wear in recreational, marina, and mobile home settings.
- SECURE CONNECTION AND USER SAFETY – Lockable housing prevents unauthorized access while dead front design helps avoid accidental contact with live components. Copper/aluminum-compatible terminals support flexible RV and trailer installations.
- FAST SURFACE INSTALLATION WITH FLEXIBLE SETUP – Pre-wired design reduces assembly time. Broad concentric knockouts and a removable door allow easy conduit and cord access for RV campground power, trailer hookup points, and outdoor applications.
- MIDWEST: OUTDOOR POWER MADE RELIABLE – Midwest Electric Products provides weatherproof power supply solutions built for durability, supporting safe electricity delivery to RV campsites, mobile homes, marinas, and outdoor construction zones.
About This Product
The Midwest Unmetered Surface Mount is factory-assembled and factory-tested. It comes to the construction job site ready to use with no need to assemble individual parts, saving installation time. The single, heavy-gauge NEMA 3R rainproof enclosure protects against weather, vandalism and nuisance tripping. It is lockable and is engineered for maximum protection of receptacles, cords, plugs, breakers. The unit complies with National Electrical Code and OSHA requirements.
Dimensions
|
Product Depth (in.) |
5.2 in |
|---|---|
|
Product Width (in.) |
9.4 in |
Highlights
- All in one construction for factory assured terminations
- Rolled edge door for cord protection
- Heavy galvanized zinc coated steel, with highest quality electro-deposition finish - resists corrosion and fading
- Welded flange NEMA 3R construction for lasting service in outdoor installations
- UL listed for RV use, not suitable for service entrance
- Padlock provision can prevent unauthorized entry
- Dead front construction prevents accidental contact with live parts
- All components are factory wired and assembled, reducing installation time
- Power outlet door has stay-open position for user convenience

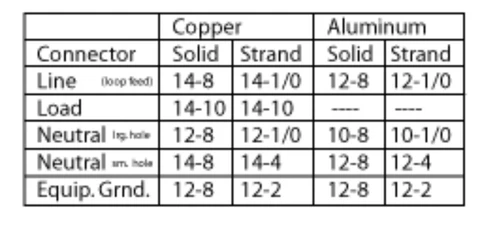

- All terminals accept copper or aluminum wire for added installation flexibility
- Broad range of concentric knock-outs to accommodate wiring needs
- All units with 12-2 Cu/Al equipment ground lug
- Closure caps included, hubs ordered separately
Details
|
Application Use |
RV |
|---|---|
|
Included |
Circuit Breaker, GFCI Receptacle(s) |
|
Maximum Amperage (A) |
100 A |
|
NEMA Configuration |
NEMA 3R |
|
Number of Circuits |
2 |
|
Number of Gangs |
0 |
|
Number of Receptacles |
2 |
|
Number of Spaces |
2 |
|
Phase Type |
1 Phase |
|
Product Weight (lb.) |
14 lb |
|
Receptacle Amperage |
20, 30 |
|
Receptacle Configuration |
5-20, TT-30 |
|
Returnable |
90-Day |
|
Voltage (V) |
240 V |
