Product Description

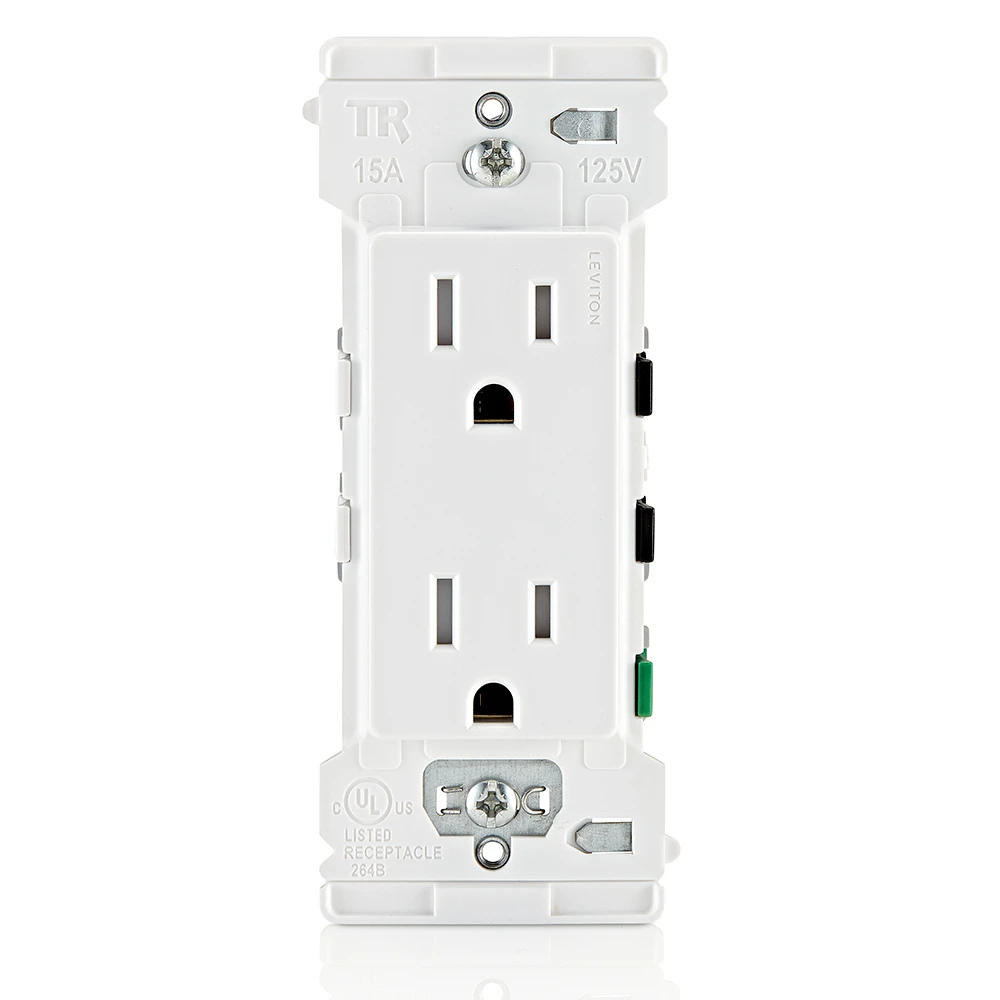

15 Amp / 20 Amp Feed-Through, 125 Volt, NEMA: 5-15R, 2 Pole, 3-Wire, Straight Blade, Decora Duplex Tamper-Resistant Outlet, Self-grounding, UL/CSA, NEC compliant - White
- FASTER – Lever terminals for fast, efficient wiring, delivering installation up to 3.5X faster than traditional devices
- EASIER – Large strap makes installations easier as well as the ability to use 14 gauge and 12 gauge stranded and solid copper wire
- SAFER – No exposed metal parts for enhanced safety
- CONVENIENT – Color-coded lever terminals to help prevent miswiring
- COMPATIBLE – Coordinates seamlessly with other Decora devices and can be used with any sized Decora wallplate
Product Features
- Amperage : 15 A
- Color : White
- Device Type : Decora Duplex Receptacle
- Tamper Resistant : Yes
- Type : Duplex Receptacle
Electrical Specifications
- Amperage : 15 A / 20 A Feed-Through
- Grounding : Self-grounding
- Pole : 2
- Wire : 3
Mechanical Specifications
- Terminal Accom. : Side Lever Wire #14-#12 AWG; Stranded and Solid Copper wire only
- Terminal ID : Color Coded Lever Terminals, including Ground
- Termination : Color-Coded Levers
Standards and Certifications
- CSA : C22.2 No. 42: File 152105; Class 6233-01
- NEMA : WD6 (Face only)
- NEMA Rating : 5-15R
- NOM : NOM Certified
- UL 498 : File E13399
Features & Benefits
- Provides the traditional appearance and superior performance of Decora® devices in a new, faster, easier-to-install, and safer design
- Unique lever terminals for fast, efficient wiring
- Color-coded lever terminals reduces risk of miswiring
- Lever doors have snap feature to assure connection has been made; audible click confirms lever door is closed
- Only Residential device on the market with a quick termination ground wire
- No exposed metal parts for enhanced safety; eliminates need for electrical tape
- Strap’s unique tongue and groove alignment offers quicker trim out on multi-gang installations
- Lever connectors work with 14 gauge and 12 gauge stranded and solid copper wire
- Wire openings prevent wire insulation from being inserted into the terminals
- One standard strip gauge for all devices
- Devices coordinate seamlessly with other Decora devices
- Longer and wider strap is compatible with Midway wallplates, and with Standard sized wallplates when breakaway tab is removed
- Can be used with Decora wallplates and Decora Plus™ screwless wallplates
- Outlet allows for split circuit applications
- Outlet is Tamper-Resistant to help prevent access by most non-rated/foreign objects
