Product Description

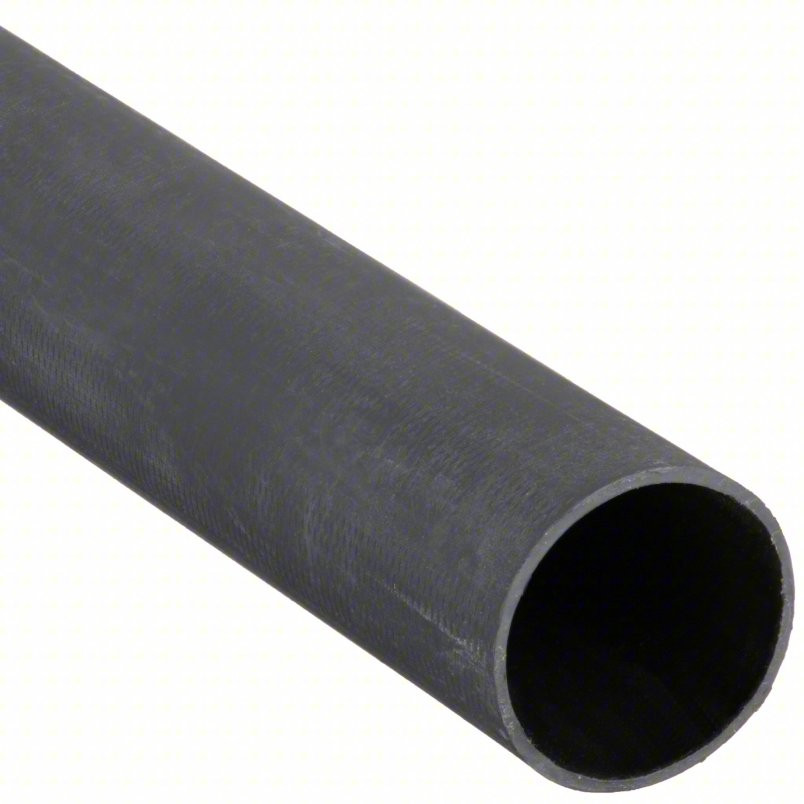

Ideal 46-354 - Heat Shrink Tubing: 1.1 in I.D. Before Shrinking, 0.35 in I.D. After Shrinking
Flame retardant and adhesive-lined heat shrink tubing resists combustion and minimizes the spread of flames. It's used where hot conditions are present, such as in engine compartments. This tubing covers wire and cable and is heated to shrink the tubing and seal the adhesive.
Product Details
- Brand: IDEAL
- Tubing Wall Type: Heavy
- Material: Cross-Linked Polyolefin with Adhesive
- Flame Retardant: YES
- Adhesive Lined: YES
- Shrink Ratio: 3:1
- Use With Wire Size: 1/0 AWG to 3/0
- I.D. Before Shrinking: 1.1
- I.D. After Shrinking: 0.35
- Wall Thickness After Shrinking: 0.12
- Length: 4
- Shrink Tubing Properties: Solvent-Resistant; UV Light-Resistant
- Color: Black
- Temp. Range: -55° to
- Package Style: Individual
- Min. Shrink Temp: 248
- Dielectric Strength: 600
- Max. Temp. Rating: 110
- Min. Temp. Rating: -55
- Standards: ANSI C119.1, C37.20.2; CSA C22.2 No. 198.2; ICEA S-19-8; IEEE 383 Vertical Flame Test; MIL-DTL-23053/15; UL 486D; Western Underground Guides Nos. 2.4, 2.5
