Product Description

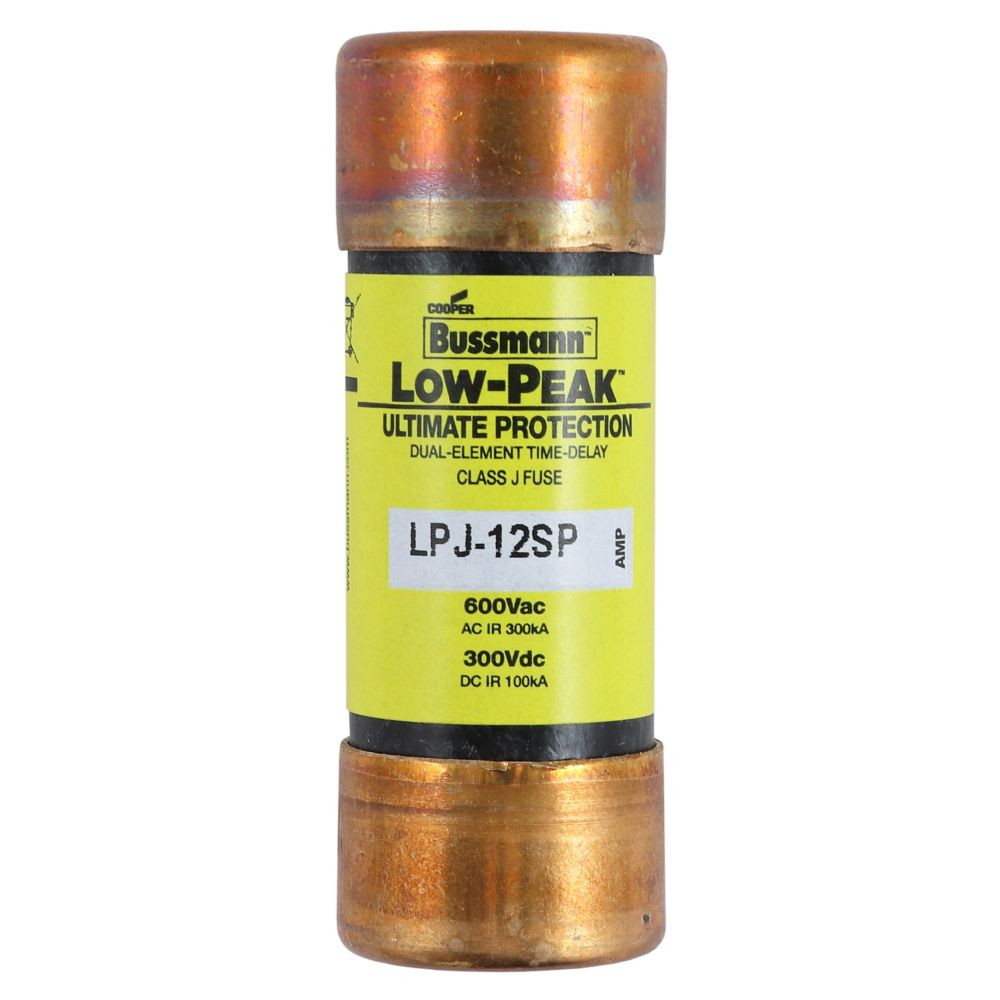

Bussmann LPJ-12SP- Time-Delay, 12A, 600V AC, Non-Indicating Fuse
Eaton Bussmann Series Class J fuse, LPJ, time-delay, dual-element current limiting fuse, 12 A, non-idicating fuse, interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc
General specifications
| Product Name | Eaton Bussmann series LPJ fuse |
| Catalog Number | LPJ-12SP |
| UPC | 051712522748 |
| Product Length/Depth | 2.25 in |
| Product Height | 0.81 in |
| Product Width | 0.81 in |
| Product Weight | 0.19 lb |
| Warranty | Not Applicable |
| Compliances | CE Marked RoHS Compliant |
| Product Type | Fuse |
Electrical rating
| Amperage Rating | 12 A |
| Interrupt rating | 300 kAIC at 600 Vac 100 kAIC Vdc |
| Response time | 10 sec at 500% |
| Voltage rating | 600 Vac, 300 Vdc |
Physical details
| Fuse type | Time delay Current-limiting |
| Number of elements | Dual |
| Packaging type | Standard |
General information
| Class | Class J |
| Connection | Ferrule end x ferrule end |
| Fuse indicator | Non-indicating |
| Special features | Indicating, High in-rush current motor protection |
Product Videos
Custom Field
Condition New
