Product Description

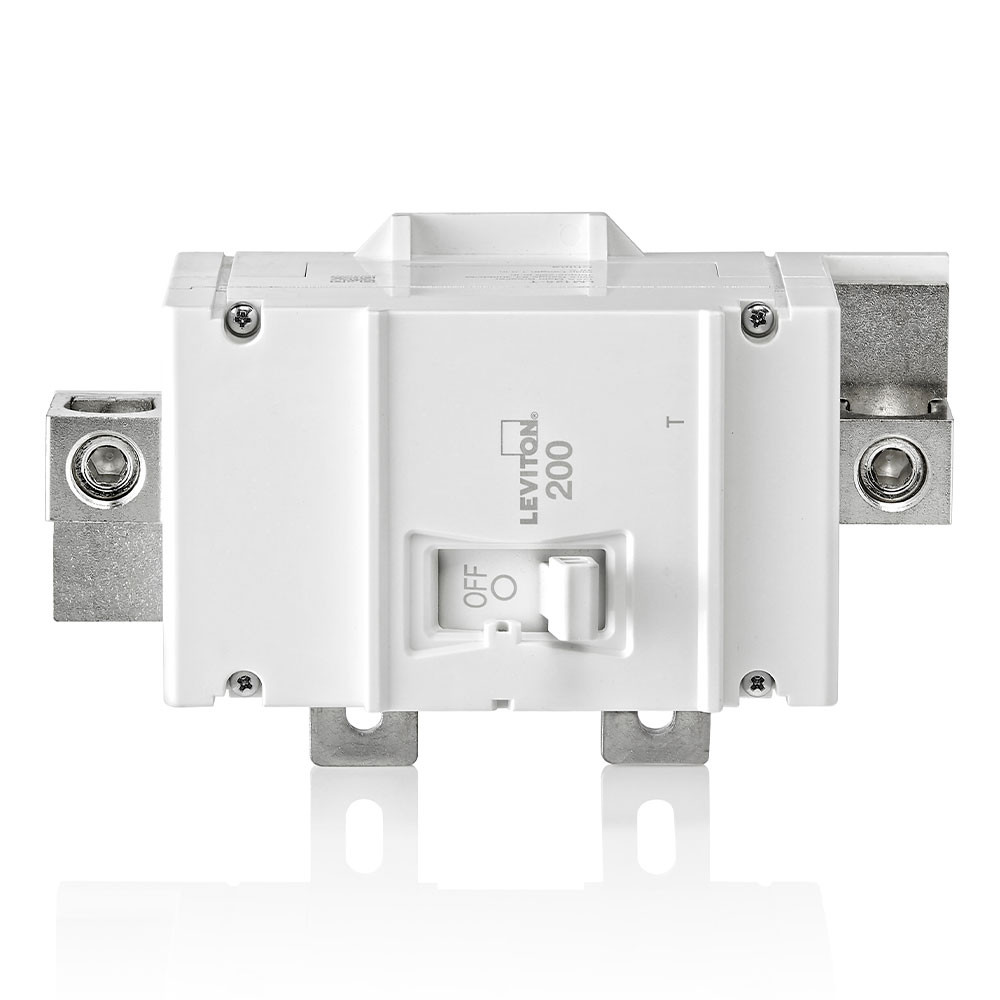

LEVITON 200A 2-Pole Thermal Magnetic Main Circuit Breaker
200A 2-Pole Main Circuit Breaker with Thermal Magnetic Trip Technology. 120/240V, 22kA Interrupt Rating
- SAFE – Provides overload and short circuit protection for your home electrical system
- CONVERTIBLE – All Leviton Load Centers come standard with 225A bussing, making it easy to adapt to project scope changes on the fly without changing load centers
- PROPRIETARY – Designed for use with Leviton Load Centers
- MODERN DESIGN – Matches our Indoor Load Center's white powder coated finish for a sleek, modern appearance
*For applications up to 60A when using copper wire; or 50A when using aluminum wire *Designed for Leviton Load Centers only
- UPC Code: 078477225660
- Country Of Origin: China
Electrical Specifications
Amperage: 200 A
Breaker Technology: Thermal Magnetic
Operating Temperature: -40C to +70C
Short Circuit Current Rating: 22 KA
Type: Main
Voltage: 120/240 VAC
Mechanical Specifications
Weight: 2.83 lbs.
Wiring: 6 AWG - 300 MCM Cu/Al
Product Features
Warranty: 10-Year Limited
Standards & Certifications
CSA-C22.2 No. 5-02: Yes
EMC Compatibility: Yes
FCC: Yes
RoHSYes
UL 489: Molded Case Circuit Breakers
Product Videos
Custom Field
Condition New
