Product Description

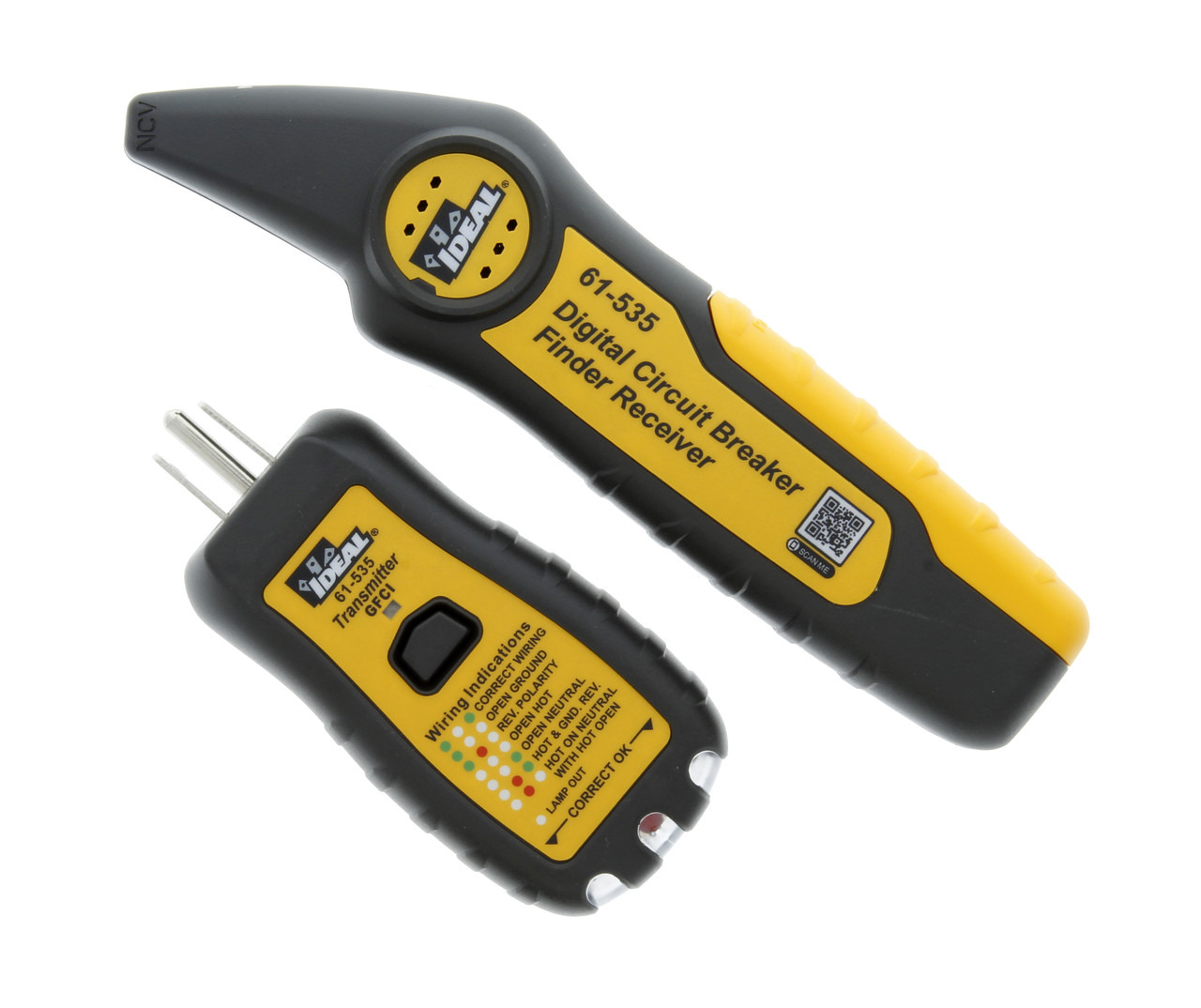

Ideal 61-535 - Automatic Circuit Breaker Finder/Receiver
The IDEAL 61-535 is a 120V AC Circuit Breaker Finder that automatically identifies a circuit breaker/fuse protecting a live branch circuit. It consists of a transmitter and a receiver. The Transmitter sends a signal over the conductors when connected to an energized circuit. It also identifies the presence of power and indicates corrector/incorrect wiring conditions via illuminated Green and Red LED’s and contains a GFCI Trip Tester.
The receiver reads the transmitter’s signal and identifies the breaker/fuse energizing the circuit by illuminating a flashing green LED and emitting beeps once it determines the breaker/fuse with the strongest signal. The receiver also senses the presence of AC voltage (60 - 600 V AC) via and non-contact voltage (NCV) sensor in the tip. The receiver indicates the presence of AC voltage by illuminating a red flashing LED and emitting a beeping sound. The audible tone for both the breaker finding mode and the NCV mode can be muted via a button for working in noise sensitive areas. The receiver also includes a work light that can be operated independently for work in poorly lit conditions.
| Color | Yellow |
|---|---|
| CSA Listing | C22.2 No. 160 |
| Audible Indicator | Yes |
| Auto Power Off | Yes |
| Battery Type | 9V |
| CAT Rating | CATII 150V |
| Correct Wiring Fault | Yes |
| Flashlight | Yes |
| Frequency | No |
| GFCI Trip Test | Yes |
| GFCI Trip Test Indicator | Yes |
| Impedance | No |
| Low Battery Indicator | Yes |
| NCV | Yes |
| Neutral Ground Voltage | No |
| Polarity Indicator | Yes |
| Power Consumption | 1.5W max. @ 120V AC |
| Supply Frequency | 60HZ |
| Visual Indicator | Yes |
| Warranty | 2-Year |
| UL Listing | UL 1436 |
