Product Description

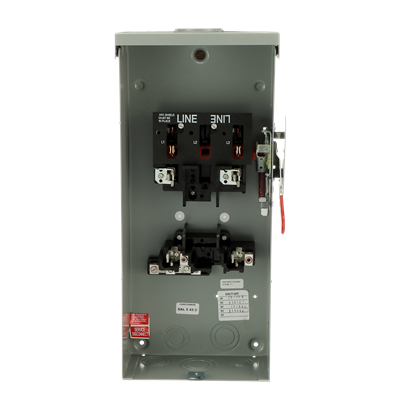

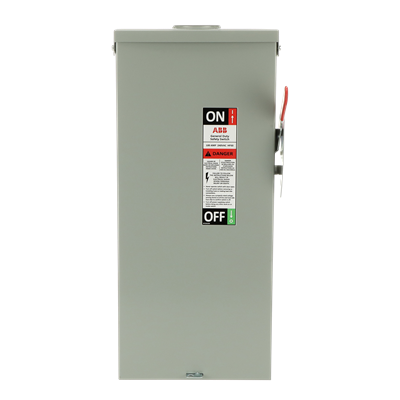

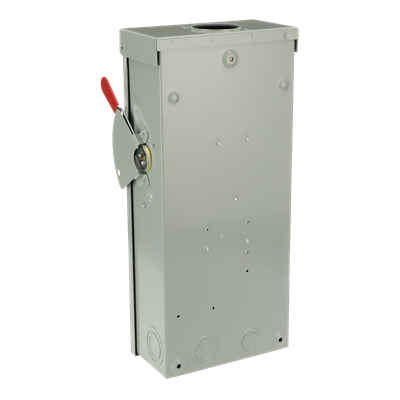

ABB/GE TG3223R - 100 Amp, NEMA Type 3R General Duty Safety Switch
| Product Specifications | |
|---|---|
| Switch Type | General Duty |
| Product Type | Switches |
| Ampere Rating | 100A |
| System Voltage | 120/240Vac, 250Vdc, 240Vac |
| No. of Poles | 2 |
| No. of Wires | 3 |
| Enclosure Type | NEMA Type 3R |
| Fusible | Yes |
| Dimension D | 5 |
| Dimension H | 21 1/4 |
| Dimension W | 9 7/8 |
| Dimension W2 | 10 |
| Fastrac | No |
| KO Figure Number | 10 |
| Brand | Spec-Setter(tm) |
| Series Prefix | TG |
| GO Schedule | GO-131A |
| HP, 125VDC | 20 |
| HP, 250VDC | 7 1/2 |
| HP, 240VAC, NEC Std, 1-ph | 15 |
| HP, 240VAC, NEC Std, 3-ph | 15 |
| HP, 240VAC, Time Delay, 1-ph | 30 |
| HP, 240VAC, Time Delay, 3-ph | 15 |
Product Videos
Custom Field
Condition New
