Product Overview
The General Electric RR9 Solenoid Relay Switch with an isolated pilot contact is an ideal replacement for older GE pilot light relays. Its momentary 24-volt switch pulses manage the open/close line voltage circuits, making it an excellent choice for vintage Bryant and Sierra systems.

Key Features

• Specifications:

  • 20 Amp, 277 Volt Remote Control Relays (RR9PBP)
  • Single Pole Single Throw (SPST) maintained relay
  • 6" wire leads with a yellow plug
  • 1.5" (W) x 1.75" (D) x 2.5" (H), with a 7/8" diameter cylinder

• Five 6" Wire Leads:

  • 2 Yellow
  • 1 Black
  • 1 Red
  • 1 Blue
  • Plug end (Yellow plastic)

• Installation Notes:

  • For systems not using plug-in relays, simply cut off the yellow plastic plug.
  • Unique coil design resists burnout and includes isolated contacts within the relay.
  • Operates in any position.


• Compatibility:

  • Replaces older GE RR4, RR6, RR8, RR9 relays
  • Compatible with Sierra Electric and Bryant relays for lighted switches
  • Replaces GE RR7 relays (instead of GE RR2, RR3, or RR5 models)

• Certifications:

  • UL Listed 508G IND. CONT. EQ.
  • cULus (compliant with both Canadian and U.S. standards)

Power Contact Latching

• 20A Tungsten at 125 VAC, 1/2 HP motor at 110-125 VAC
• 30A Ballast at 277 VAC, 1 1/2 HP motor at 277 VAC
• 30A Resistive at 277 VAC
• 20A Ballast at 347 VAC, 1 1/2 HP motor at 347 VAC
• 20A Resistive at 347 VAC

Additional Information

• Pilot Contact: Isolated, 1A, 24 VAC
• Operating Voltage: 24-29 VAC (±10%), half/full wave rectified or pure, or 30-38 VDC (±10%) filtered
• Endurance:
  • 50,000 cycles (full load)
  • 100,000 cycles (no load)

Wiring Tip

• When replacing older relays like the RR8, wire colors have changed:
  • Red to Red
  • Black to Black
  • Yellow/Blue Spiral (old) to Yellow (new)
  • Blue (old) to both Blue and Yellow (new)

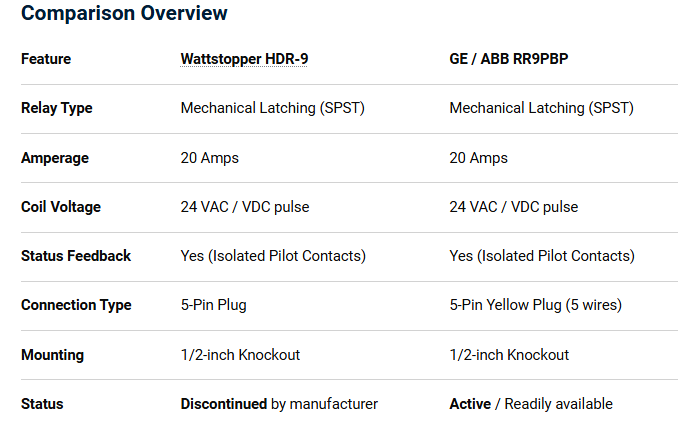

Replacement Guidance

• An RR9 relay can replace an RR7 model if the unused yellow leads are capped off.

A reliable and versatile choice, the GE RR9 relay switch delivers efficiency and longevity for your low voltage control systems.
