T&B (53111) Cast Copper Connectors Code Copper

Hover over image to zoom

  • T&B (53111) Cast Copper Connectors
$148.63
SKU:
53111
UPC:
786210531113
Shipping Cost:
Calculated by weight at checkout.
Minimum Purchase:
1 unit(s)

 Product Description

T&B (53111) Cast Copper Connectors Code Copper

Cast Copper One-Hole Heavy Duty Lug - Straight Standard Barrel - max 35KV, 3/0 AWG Wire, 3/8 Bolt Size, Tin Plated Blind End, White 66

Features

  • Electro Tin-Plated for Corrosion Resistance. Chamfered Barrels Provide Ease of Strand Entry and Inspection hole facilitates full insertion of the conductor.
  • Cable Area Clearly Identified on Lug.

General

  • Style: Heavy-Duty
  • Material: Cast Copper
  • Finish: Tin Plated
  • Wire: Size 3/0 AWG
  • Number of Studs: 1
  • Stud Size (inches): 3/8
  • Tongue Angle: Straight
  • Barrel Length: Standard
  • Barrel Shape: Standard
  • Tongue Width: Standard
  • Peep Hole: N
  • Marking: Standard
  • Hole Shape: Round
  • Die Color: White
  • Die Code: 66

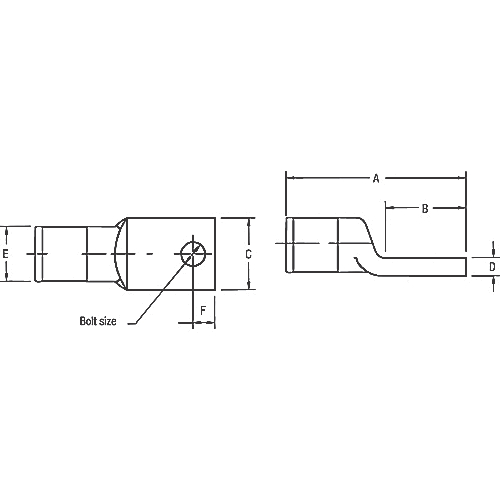

Dimension Information

  • A (inches) 2 5/8
  • B (inches) 1 1/4
  • C (inches) 1
  • D (inches) 9/32
  • F (inches) 17/32

Specifications

  • Temperature Rating 105°C
  • Voltage Rating 600V to 35KV




 Find Similar Products by Category

 Product Reviews

This product hasn't received any reviews yet. Be the first to review this product!

Condition: New In stock
