T&B (500HPS) Plated Split-Bolt Connectors with Spacer

T&B (500HPS) Plated Split-Bolt Connectors with Spacer

Type HPS Plated Split-Bolt Connector with Spacer made of Copper Alloy for Use on Copper, Aluminum, ACSR Conductors. Conductor Range for Equal Main and Tap 500 kcmil-1/0 Str.

Features

• Bolt and pressure bar of copper alloy, completely tin plated for corrosion resistance. Contoured spacer of bronze alloy copper.

Application

• Splicing, tapping or terminating conductors in power and grounding electrical connection.

General

• Style Type HPS
• Wire Type Copper, Aluminum, ACSR
• Material Copper Alloy
• Plating Electro Tin-Plated
• Color Metallic
• Conductor Range for Equal Main and Tap 500 kcmil-1/0 Str.
• Conductor Range Min. Tap with one Max. Main 1/0 Str.
• Conductor Range For Equal Main and Tap ACSR 397.5-1/0

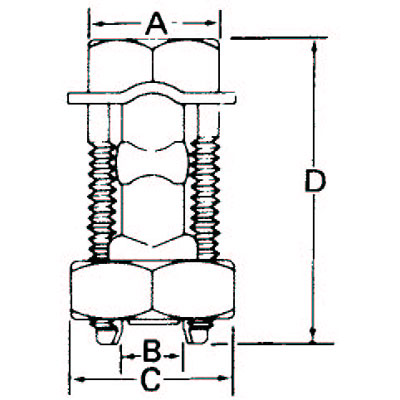

Dimension Information

• A (inches) 1 1/2
• B (inches) 0.842
• C (inches) 1 7/8
• D (inches) 3 1/32
