T&B (2B1000) Mechanical Tap
Copper Type 2B - Two-Bolt Connector without Spacer for Wire Range Main: 750 - 1000 kcmil Tap: 2 Sol. - 1000 kcmil , Bolt Size 15/16
Features
- Castings and bolts of high-strength copper alloy. Removable cap.
- UL 486A listed for copper conductor only.
General
- Style Type 2B - Two-Bolt Connector without Spacer
- Material Copper
- Conductor Range AWG Main 750 - 1000 kcmil
- Conductor Range AWG Tap 2 Sol. - 1000 kcmil

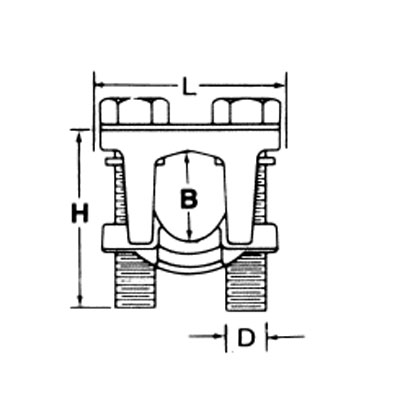

Dimension Information
- Bolt Size (inches) 15/16
- D (inches) 5/8
- H (inches) 2 3/4
- L (inches) 2 31/32
- Conductor Diameter B 1.255 - 2.304
