Product DescriptionBRAND: ABB Installation Products (formerly Thomas & Betts Corporation)
ABB (1CA) Split Bolt
Type CA Aluminum Split-Bolt Connector with Spacer and Washer for Use on Copper, Aluminum Conductors. Conductor Range for Equal Main and Tap 1/0 Str.-2 Sol.
- Bolt, nut, pressure bar and contoured spacer of aluminum alloy. Pressure bar and contoured spacer made of electrolytic copper. Spacer is completely tin plated.
- Bolt and nut are anodized to prevent seizing of threads and reduce galvanic corrosion when in contact with copper conductor.
- Splicing, tapping or terminating conductors in power and grounding electrical connection.
- Style Type CA
- Wire Type Copper, Aluminum
- Material Aluminum
- Color Metallic
- Conductor Range for Equal Main and Tap 1/0 Str.-2 Sol.
- Conductor Range Min. Tap with one Max. Main 1/0 Str.-6 Sol.

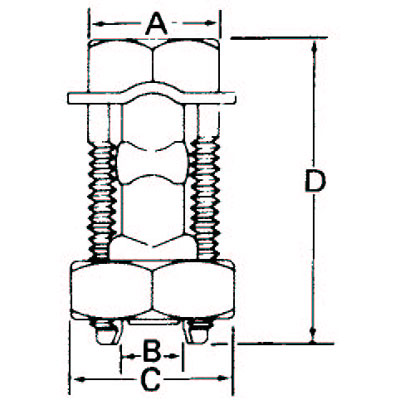

- A (inches) 7/8
- B (inches) 0.443
- C (inches) 1 1/8
- D (inches) 2 1/16
