T&B (10HPS) Plated Split-Bolt Connectors with Spacer

T&B (10HPS) Plated Split-Bolt Connectors with Spacer

Type HPS Plated Split-Bolt Connector with Spacer made of Copper Alloy for Use on Copper, Aluminum, ACSR Conductors. Conductor Range for Equal Main and Tap 1/0 Str.-6 Sol.

Features

• Bolt and pressure bar of copper alloy, completely tin plated for corrosion resistance. Contoured spacer of electrolytic copper.

Application

• Splicing, tapping or terminating conductors in power and grounding electrical connection.

General

• Style Type HPS
• Wire Type Copper, Aluminum, ACSR
• Material Copper Alloy
• Plating Electro Tin-Plated
• Color Metallic
• Conductor Range for Equal Main and Tap 1/0 Str.-6 Sol.
• Conductor Range Min. Tap with one Max. Main 6 Sol.
• Conductor Range For Equal Main and Tap ACSR 1-6

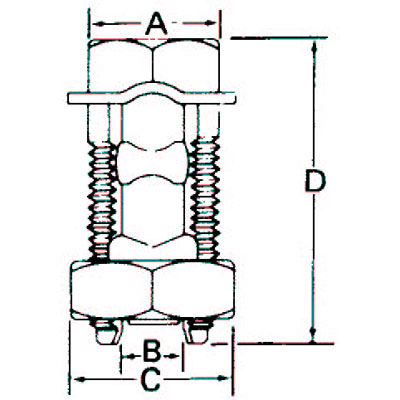

Dimension Information

• A (inches) 3/4
• B (inches) 0.385
• C (inches) 15/16
• D (inches) 1 13/16
